Step 1: Eliminating Safety Risks – From Passive to Active Defense
Industry Gold Standards:
✅ Cell-Level Active Protection:
‣ Thermal runaway response < 0.5s (request third-party test videos).
‣ Dual-path suppression (aerosol/liquid cooling).
✅ Wide-Temperature Operation: >90% capacity retention at -25°C~55°C (require low-temp performance curves).
✅ Certification Triad: UL954A + IEC62619 + UN38.3 (non-negotiable).
Step 2: Economics Decoded – Levelized Cost of Storage (LCOS) Defines ROI
Core Formula: LCOS (USD/kWh) = (Total System Cost - Residual Value) / Total Discharge Energy
Note: Total Discharge Energy = Rated Capacity × Cycle Life × Average DoD
| Solution Type | Round-Trip Eff. | Cycle Life | 10-yr LCOS |
| Highly Integrated | 94%-96% | 8,000 | $0.04-0.06 |
| Conventional Split | 85%-88% | 6,000 | $0.07-0.09 |
Cost-Reduction Levers:
System Losses: DC-coupled systems outperform AC-coupled by 5-8% efficiency
Smart Dispatch: >85% solar self-consumption rate shortens payback by 1.5 years
Step 3: Scenario Matching – Modular Design for Future-Proof Scaling

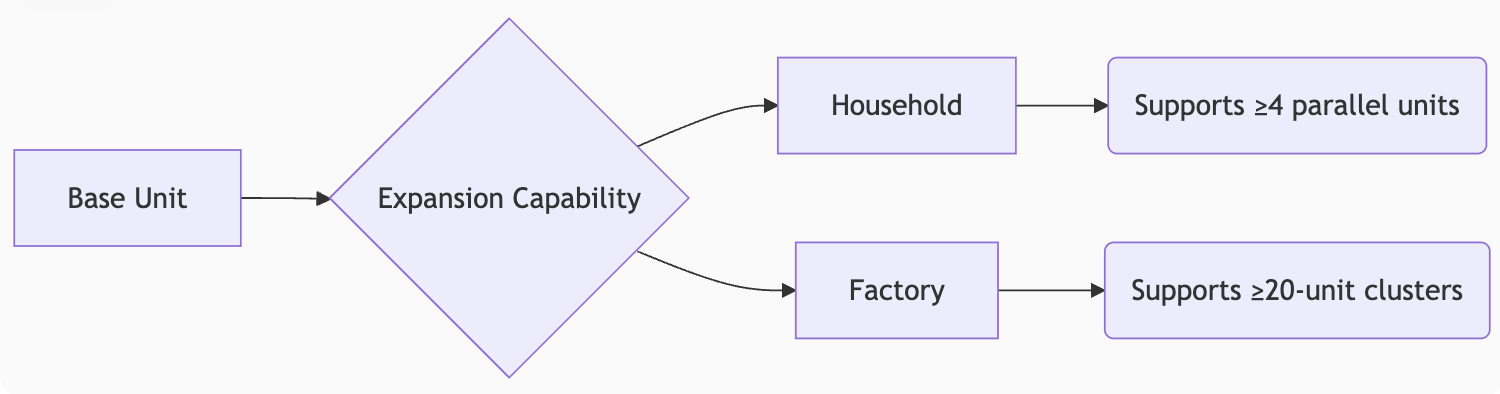

Configuration Logic:
| User Type | Key Metric | Threshold |
Household | Floor Area per Unit | ＜10.7 sq.ft (1㎡) |
SME | Parallel Efficiency Loss | ＜3% |
Utility-Scale | Cluster Capacity Limit | ＞1MWh |
1. Select an 8,000-cycle battery (which generates 30% more electricity than a 6,000-cycle one)
2. Improve charging and discharging efficiency (96% generates 8% more electricity per year compared to 88%)
3. Intelligent scheduling increases the frequency of arbitrage
⚖️ Leading Tech Comparison
| Technology | Strengths | Limitations | Best For |
Liquid Cooling + Cell Protection | ±1°C temp control, +30% lifespan | 10%-15% higher cost | High-cycle factories |
Air Cooling + System Protection | Lower CAPEX, easy maintenance | Poor low-temp performance | Temperate households |
Intelligent Cluster Management | <2% cell imbalance | Requires BMS license | Second-life ESS projects |

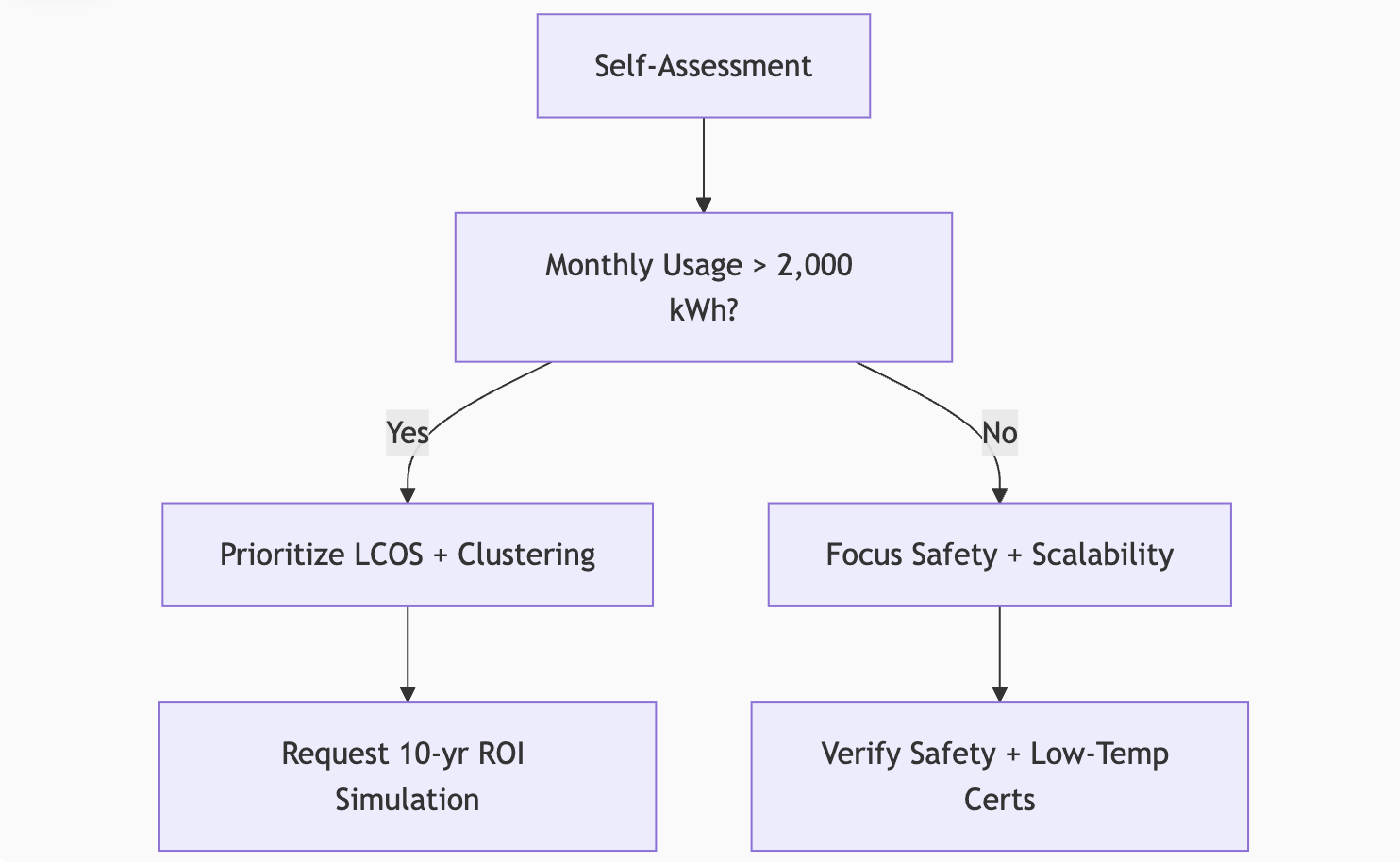

Decision Roadmap
3-Step Selection:
Households: Safety certs > Footprint > LCOS <Threshold (e.g. $0.07/kWh)
Businesses: LCOS <Threshold ($0.05/kWh) > Clustering > Smart Dispatch
Off-Grid: Wide-temp range > Protocol openness > System efficiency
